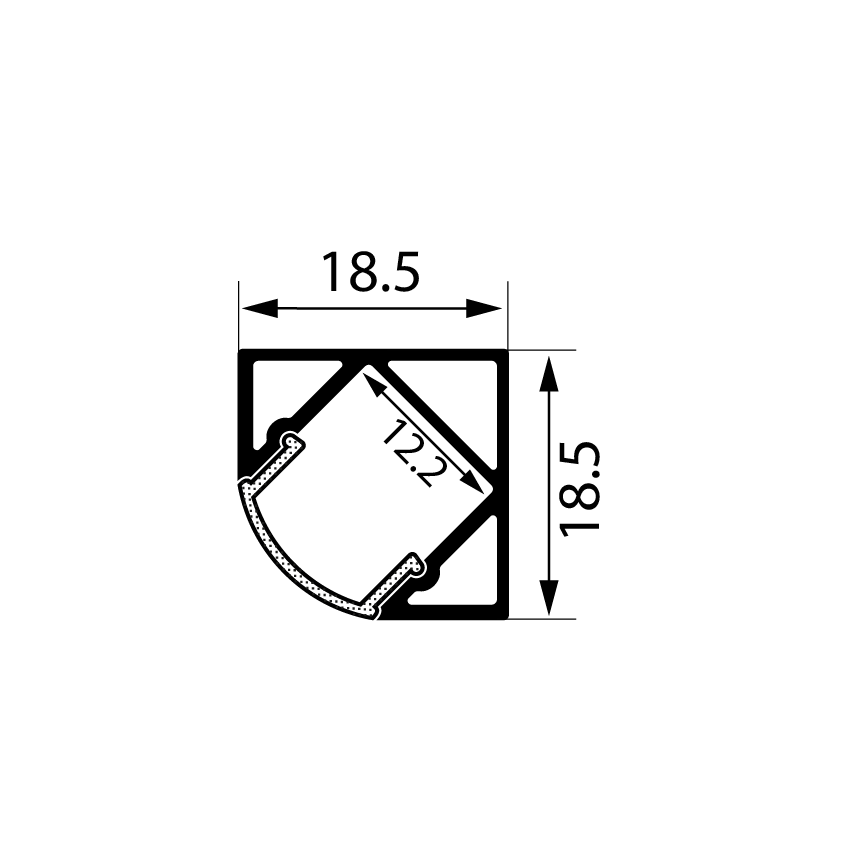

The ILA1919 is a corner profile offering countless advantages for illuminating ceilings, coves, joinery and backlighting at a 45-degree angle. Our 18.5mm x 18.5mm surface-mounted profile is supplied in two-metre lengths with end caps to suit. Standard diffuser colours include clear, opal and black, as well as a flexible diffuser (up to 20-metres) to ensure a seamless line of light for longer lengths. The profile can also be pre-painted in black or white. This profile accommodates an IP-rated LED Strip ideal for bathrooms and other weatherproof areas.
SPECIFICATIONS OVERVIEW:
| Mounting | Surface Mounted |
| Finish | Anodised, White, Black |
| Diffuser | Clear, Opal, Flexible Opal, Flexible Black |
| Colour Temperature | 2700K, 3000K, 4000K |
| LED Strip | 10W, 15W, 20W (IP20 only) |
| CRI | >90 |
| Controls | 24VDC Non-Dim, Phase, 1-10V, Dali |
| IP Rating | IP20, IP67 (10W, 15W only) |
| SCDM | 3 |
| Operating Temperature | -20° ~ 45° |
| Warranty | 5 Years |
SPECIFIER'S CODE GENERATOR:
Please select a variable from each option below to generate your specifier’s product code.
